Researcher-Paper Model (Structural and Object)#

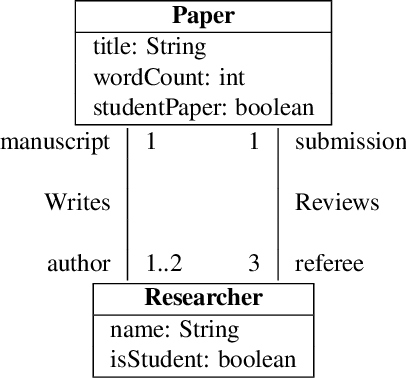

This image below shows the structural model of Researcher Paper Review taken from the paper Verification of UML/OCL Class Diagrams using Constraint Programming

Researcher Paper Review model

Some of the OCL Constraints defined on these models are shown below:

context Paper inv LimitsOnStudentPapers: Paper::allInstances()->exists(p | p.studentPaper) and Paper::allInstances()->select(p | p.studentPaper)->size() < 5

context Paper inv :self.wordCount < 10000

Some example constraints are defined in the Researcher example

More constrained can be defined using BUML Structural and rules classes as shown below:

constraintNoStudentReviewers: Constraint = Constraint(name="NoStudentReviewers", context=paper,
                                           expression="context Paper inv NoStudentReviewers:self.referee->forAll(r | not r.isStudent =False)", language="OCL")
